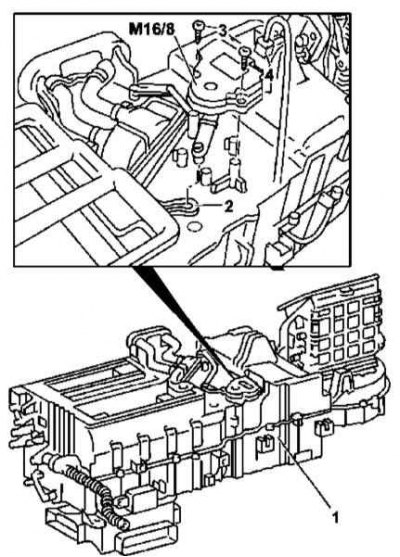

Details of the installation of the electric motor of the mixing flap drive
2 - Lever mechanism
1. The details of the installation of the electric motor for the mixing flap drive are shown in the illustration, to which all references in the text refer.
2. Remove the instrument panel (see Chapter Body).
3. Disconnect the electrical wiring connector (4) of the drive electric motor (M16/8).
4. Loosen the mounting screws (3) and remove the drive motor assembly (M16/8) from the air conditioner heater/evaporator casing (1).
5. Installation is carried out in reverse order.
