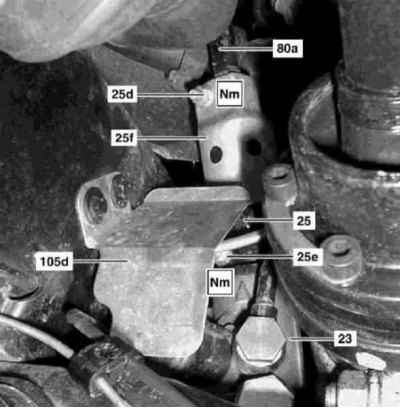

Details of installation of the entrance node (25) steering gear (23)
1. Installation details of the steering gear input assembly are shown in Ref. an illustration to which all references in the text refer.
2. Bring the front wheels into a straight line position and fix the steering wheel with the special tool.
3. If equipped, remove the right heat shield (105d) exhaust systems.
4. Give the nut (25th) and a bolt of fastening of an input knot (25) steering mechanism.
5. Loosen the nut (25d) bolted connection of the input shaft of the assembly (25) with lower steering shaft (80a).
6. Gently pull up to release the entry assembly (25) from the steering gear control valve assembly, - under no circumstances use force, - if necessary, loosen the lock slightly with a screwdriver!
7. If equipped, remove the cover (25f) input node.
8. Installation is carried out in the reverse order - when installing the input node, the rail must be in neutral (central) position.
