EVAP charcoal canister installation details for petrol models

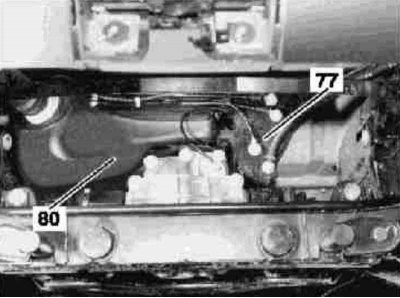

1. Installation details of the carbon canister of the EVAP system (EVAP) on gasoline models are shown in the illustration, to which all references in the text refer.
2. Carbon adsorber (77) is an integral component of the fuel tank assembly (80), - remove the fuel tank (see Section Removal and installation of the fuel tank).
3. Installation is carried out in the reverse order.
