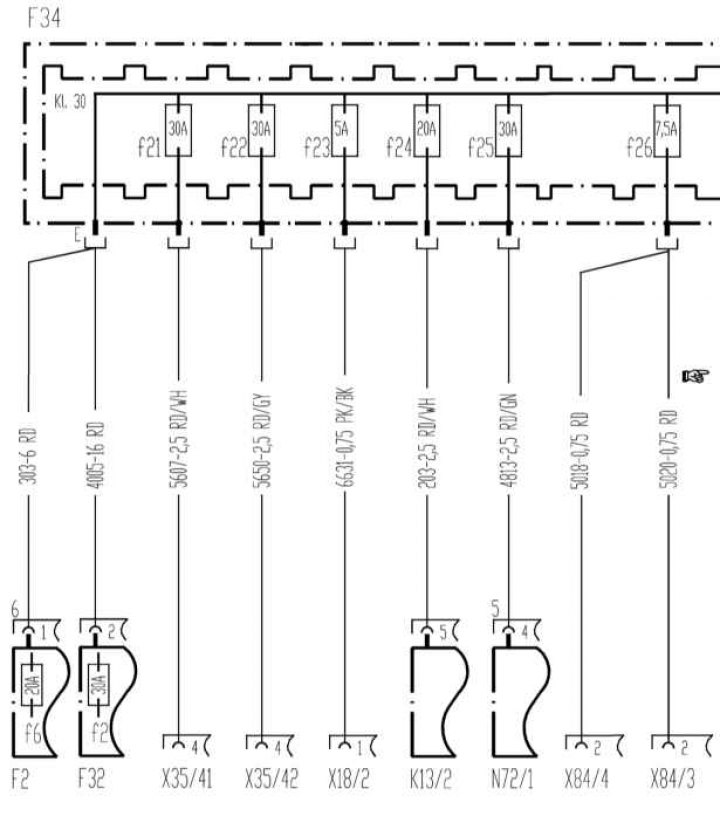

Cabin fuse box F34 (all models)
Open a larger image in a new tab »
For a list of symbols on electrical diagrams, see this page →
Open a larger image in a new tab »
For a list of symbols on electrical diagrams, see this page →

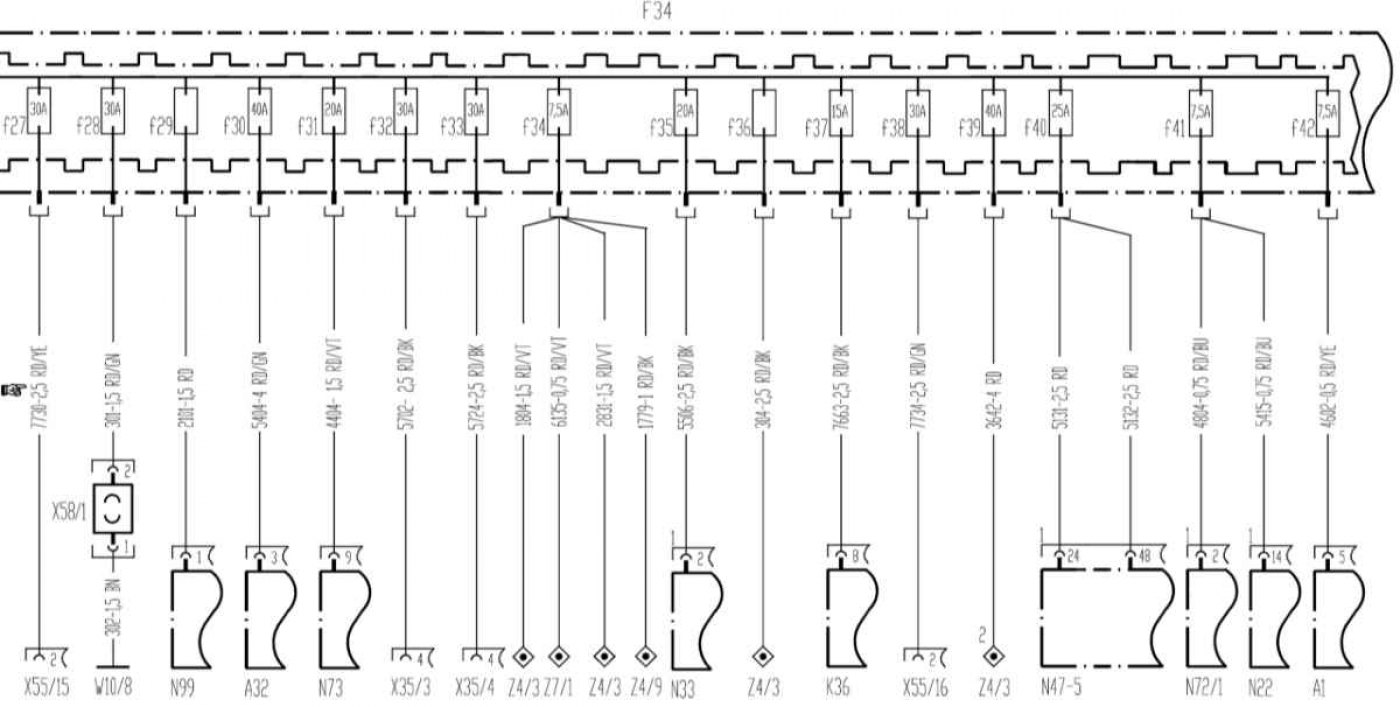

Interior fuse box F34 (all models) (Mercedes-Benz G-Class W463)
Open a larger image in a new tab »
For a list of symbols on electrical diagrams, see this page →
This article is available at: russian, bulgarian, belarusian, ukrainian, serbian, croatian, romanian, polish, slovak, hungarian
The article has been verified: Polyakov Zakhar Grigorievich
Mounting block of preliminary fuses F32 (all models produced from 01.09.01)
Mounting block of fuses F2 (all models produced from 01.09.01)
Mounting block of fuses F1 (all models produced from 01.09.01)
Steering column (all models)
Anti-lock Brake System (ABS) (all models)
Mounting block of fuses F2 (all models produced from 01.09.01)
Mounting block of fuses F1 (all models produced from 01.09.01)
Steering column (all models)
Anti-lock Brake System (ABS) (all models)
Mounting block relay K40 (petrol models)
Electronic Ignition Switch (EIS) (all models produced from 11/25/02)
Diagnostic connector DLC (all models produced from 01.09.01)
Instrument cluster without ASSYST system (all models produced from 01.09.01)
Instrument cluster with ASSYST system (petrol models)
Electronic Ignition Switch (EIS) (all models produced from 11/25/02)
Diagnostic connector DLC (all models produced from 01.09.01)
Instrument cluster without ASSYST system (all models produced from 01.09.01)
Instrument cluster with ASSYST system (petrol models)
