Anti-lock brake system (ABS) (all models)
0
Anti-lock brake system (ABS) (all models)

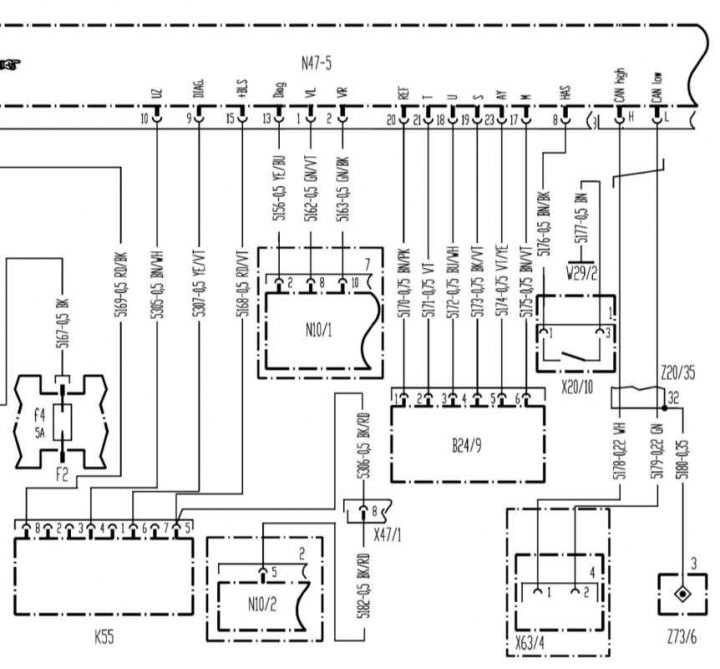

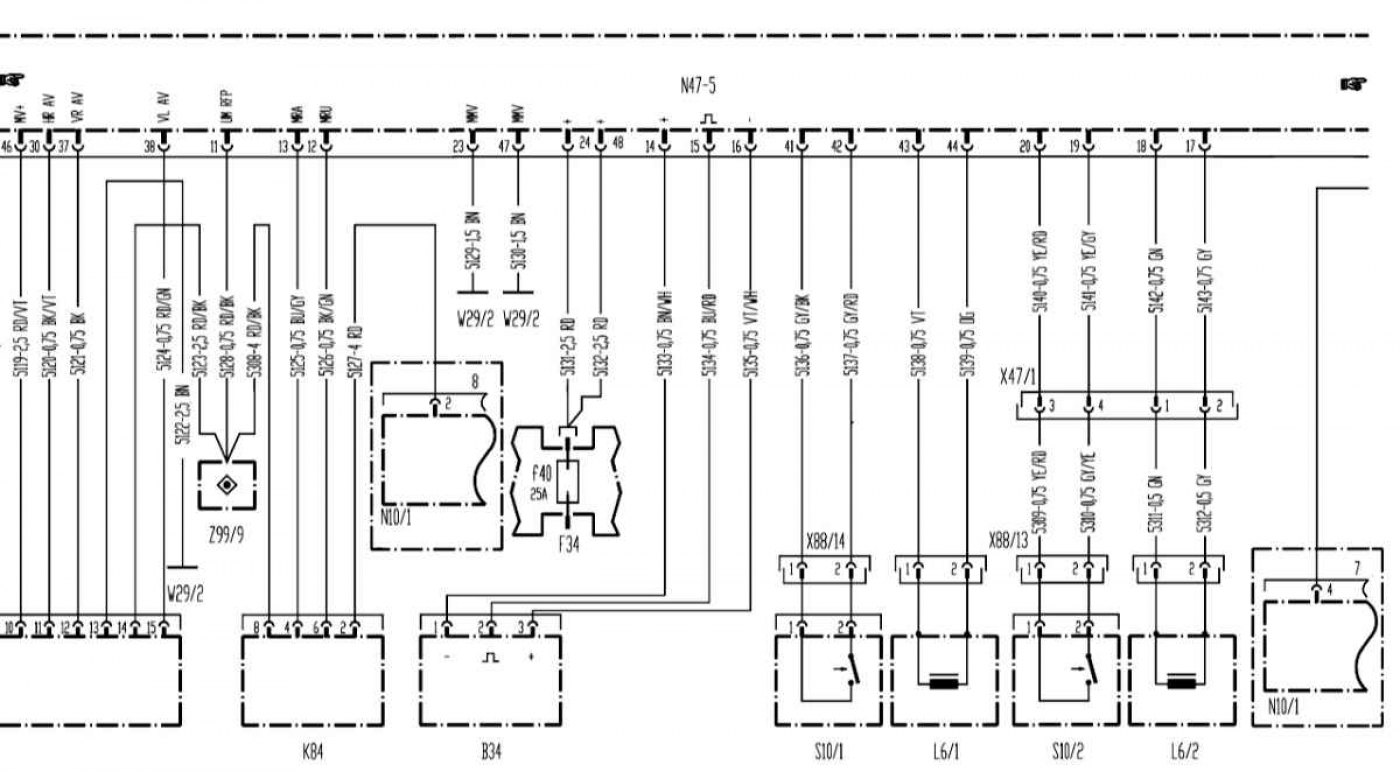

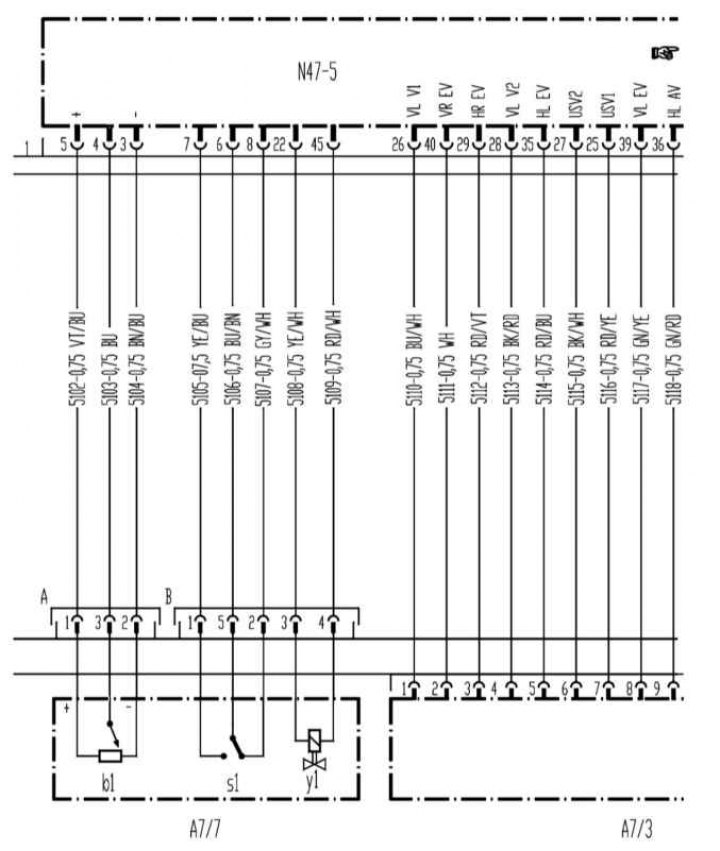

Открыть большую картинку в новой вкладке »

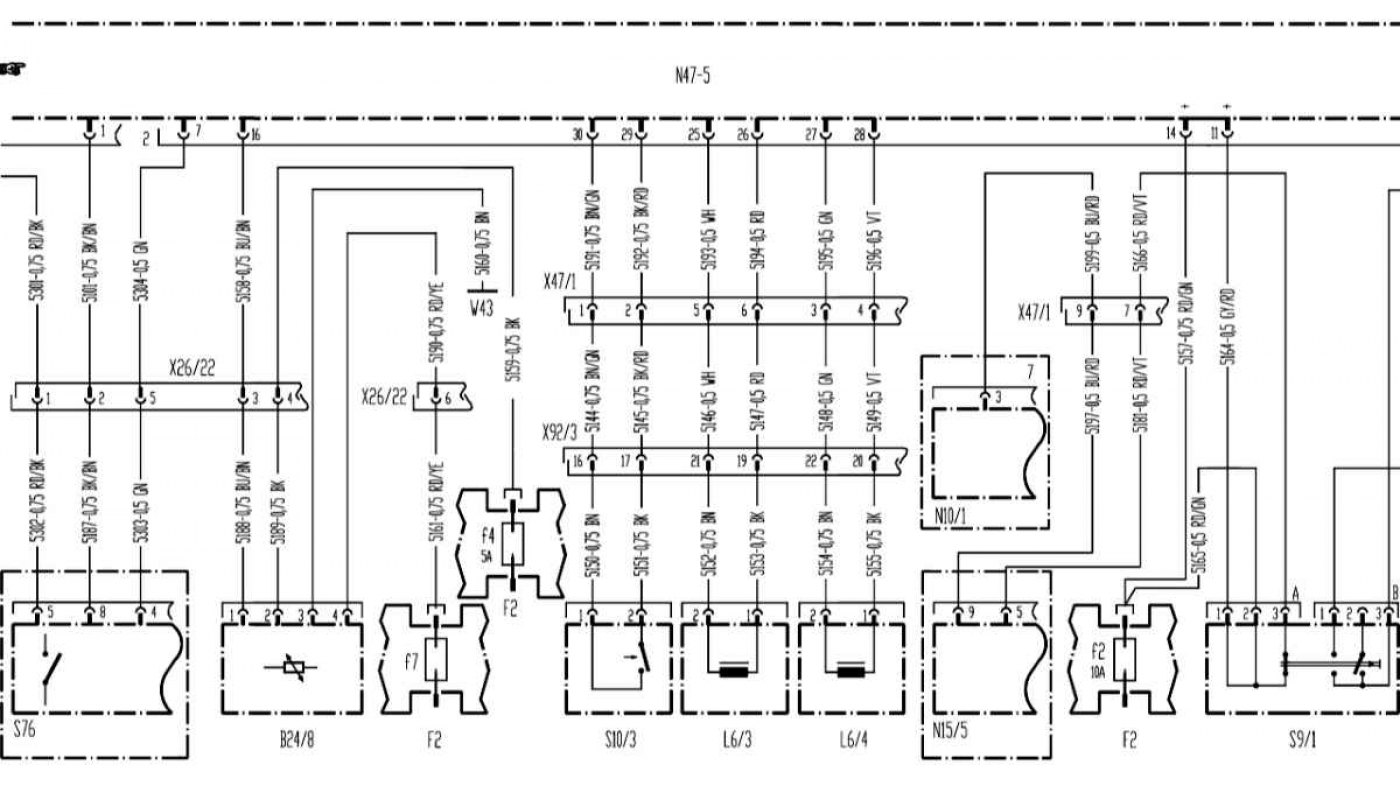

Открыть большую картинку в новой вкладке »
