Details of installation of the switch of management of functioning of the electric drive of the top hatch

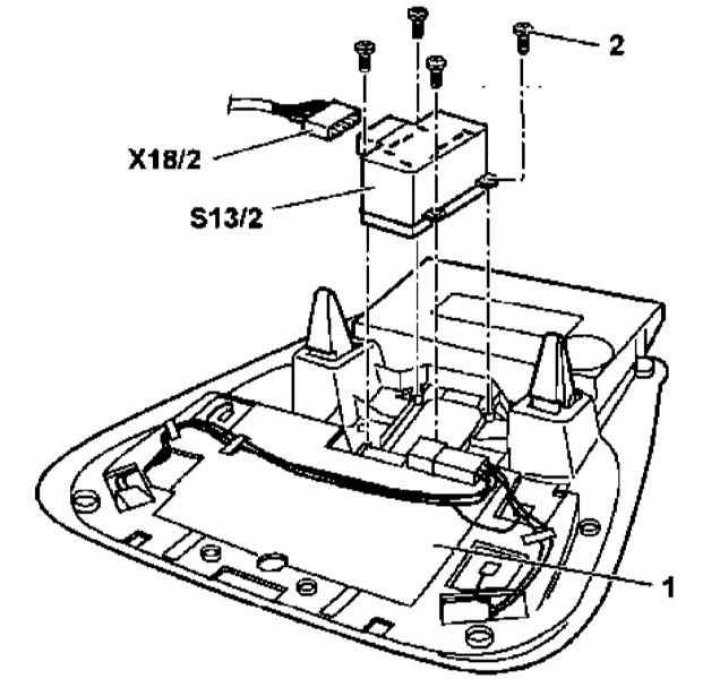

1. The details of setting the switch are shown in the illustration, to which all references in the text refer.
2. Remove the overhead console panel (see Section Removing and installing the overhead console assembly).
3. Remove the fixing screws (2) and remove the switch assembly (S13/2) from overhead console panel (1).
4. Disconnect the ceiling wiring harness connector (Х18/2).
5. Installation is carried out in the reverse order.
