Radio (upgraded, with emergency call system) (ML 430) (Mercedes-Benz M-Class W163)

0

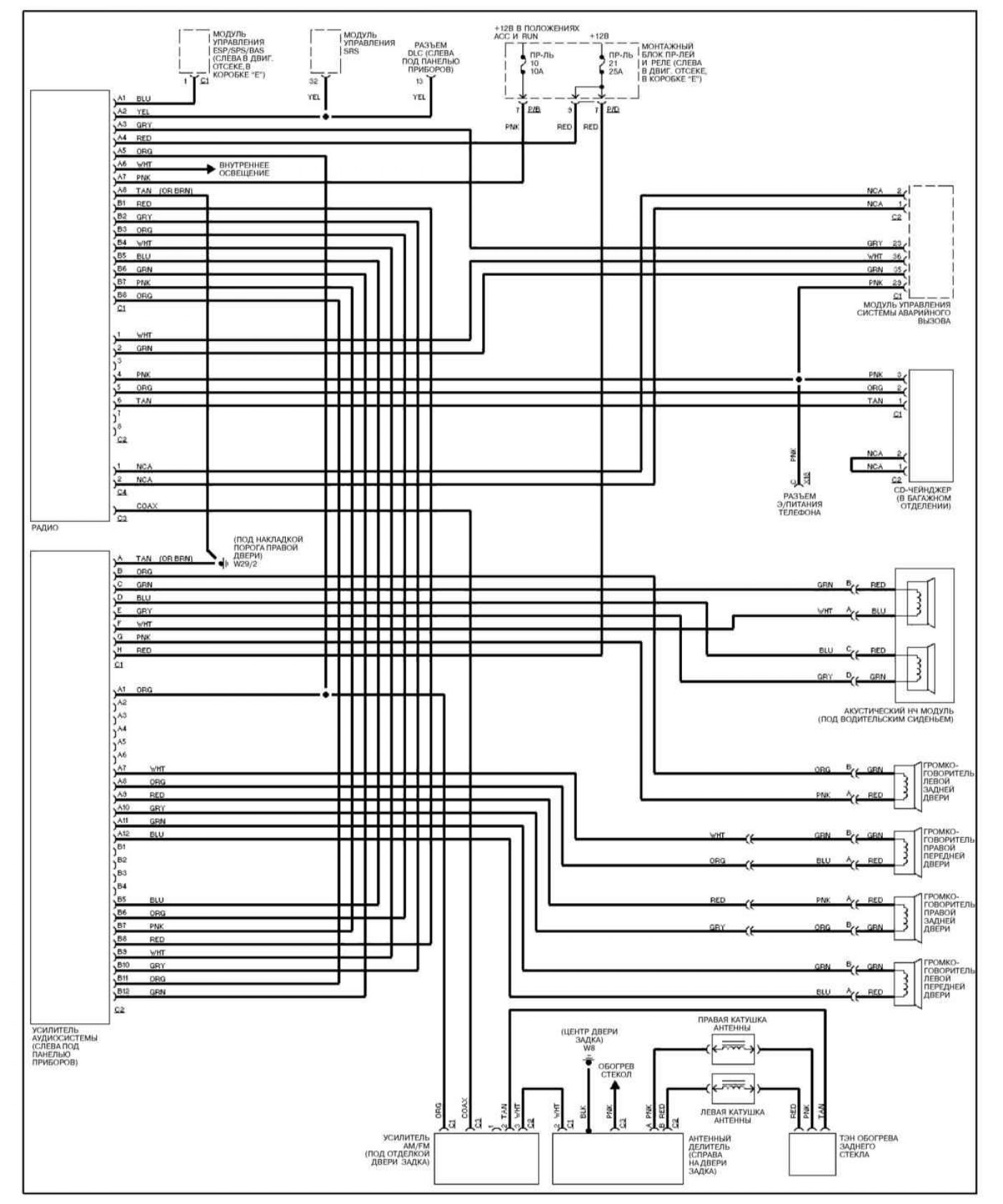

Radio (improved equipment, with emergency call system) (ML 430)

Open a larger image in a new tab »

Open a larger image in a new tab »

See the abbreviations, wiring, terminal and terminal designations used in electrical diagrams here →

This article is available at: russian, bulgarian, belarusian, ukrainian, serbian, croatian, romanian, polish, slovak, hungarian

The article has been verified: Panova Maya Vladimirovna
