Electrical equipment
Electrical circuits
Radio (basic, with emergency call system) (ML 430)
0

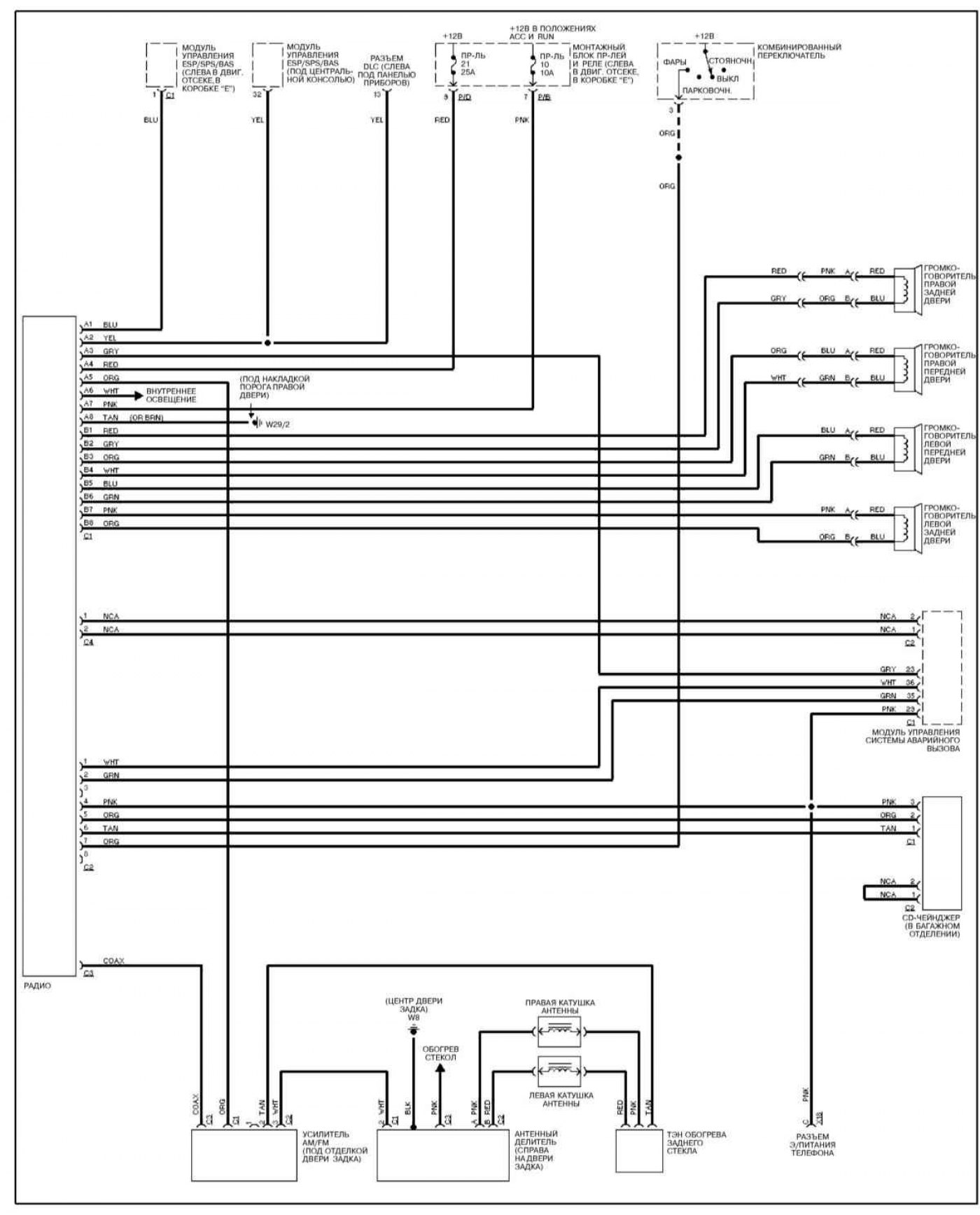

Radio (basic equipment, with emergency call system) (ML 430)
Открыть большую картинку в новой вкладке »
Abbreviations used on electrical diagrams, designations of electrical wiring, terminals and terminals, see
here →
