Electric single panel roof hatch (ML 430) (Mercedes-Benz M-Class W163)

0

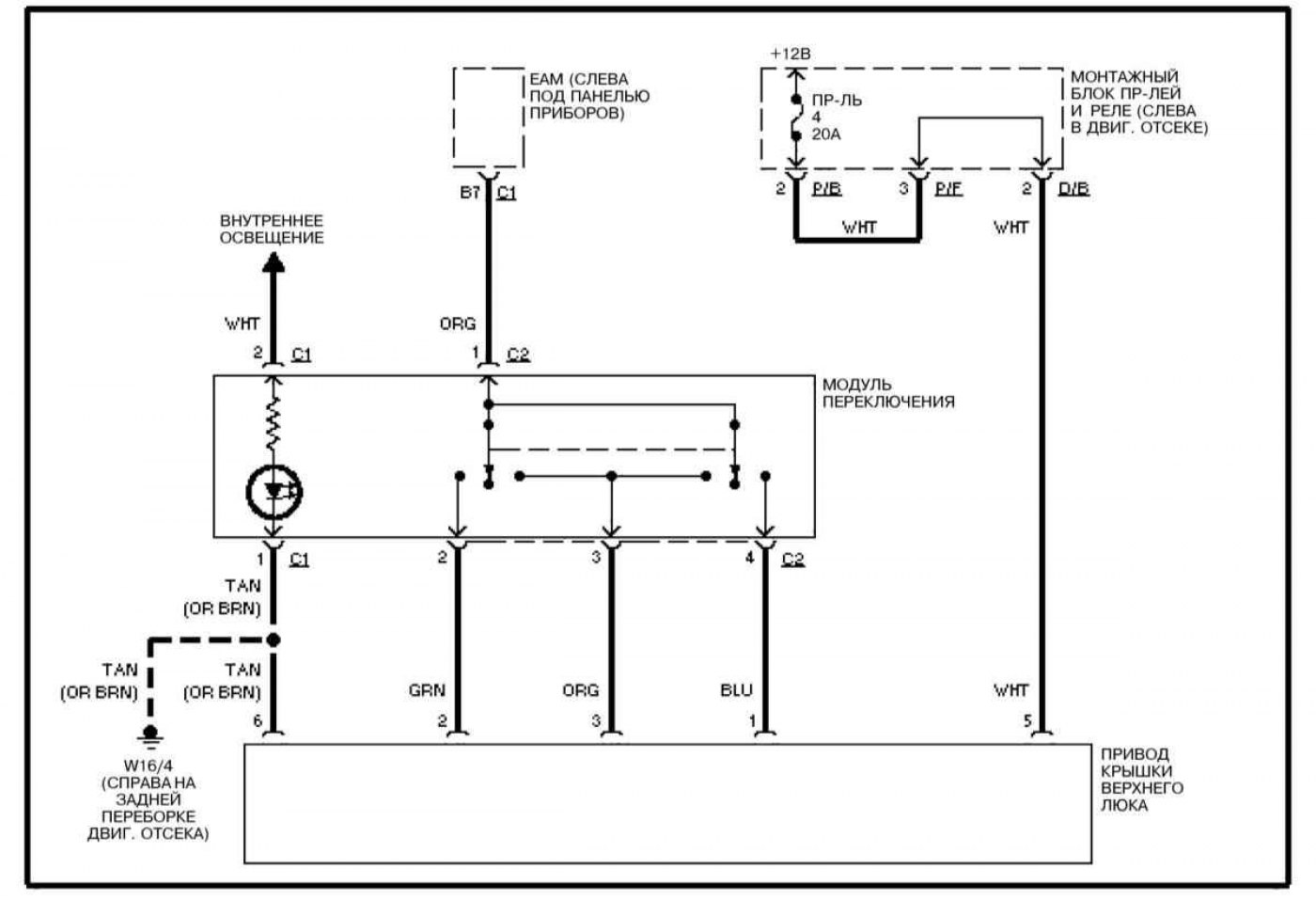

Electric single panel roof hatch (ML 430)
