All wheel drive (4WD) (ML 430)
0

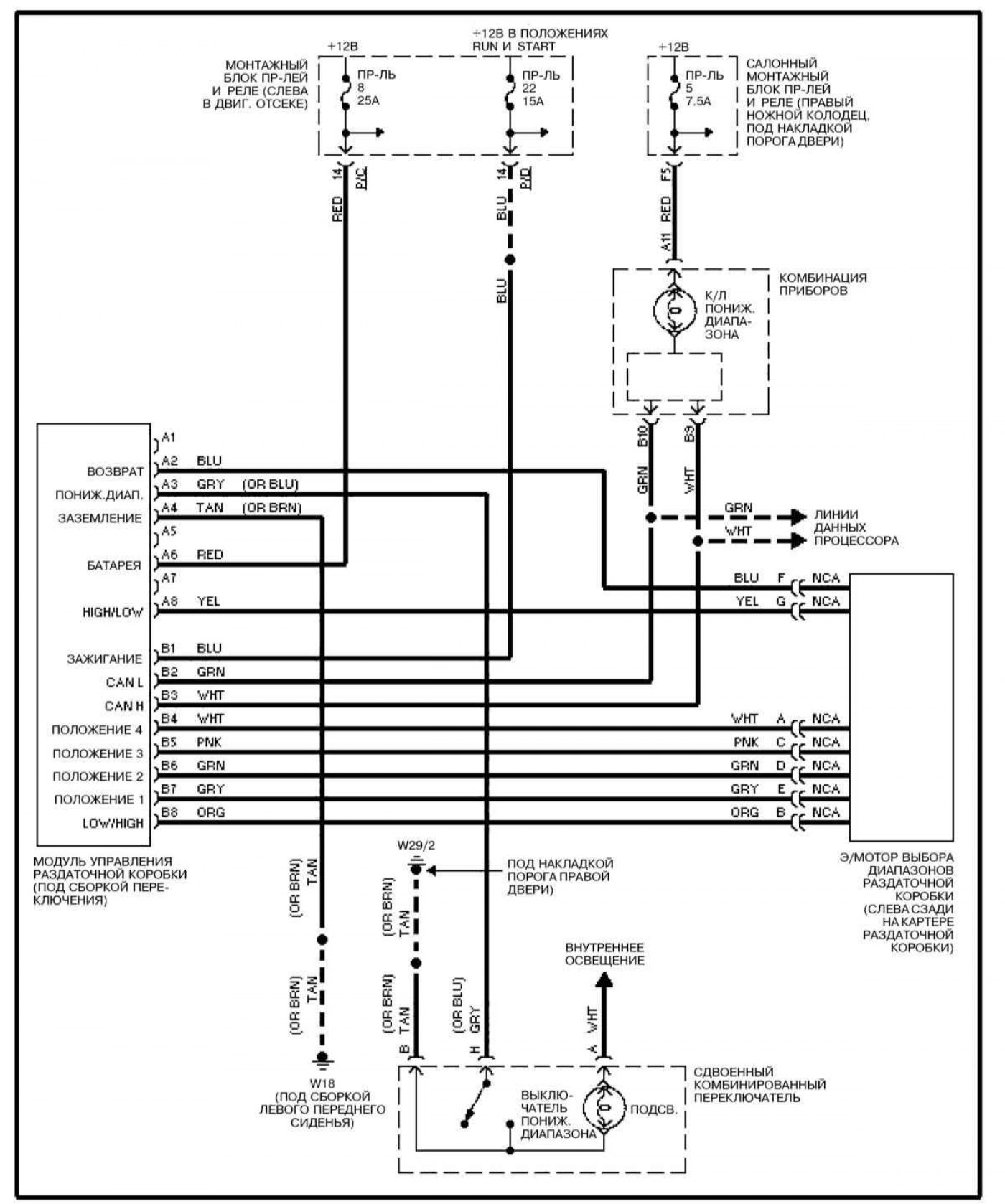

Four-wheel drive (4WD) (ML 430)
Открыть большую картинку в новой вкладке »
