Supplemental Restraint System (SRS) (without seat position memory function) (ML 430) (Mercedes-Benz M-Class W163)

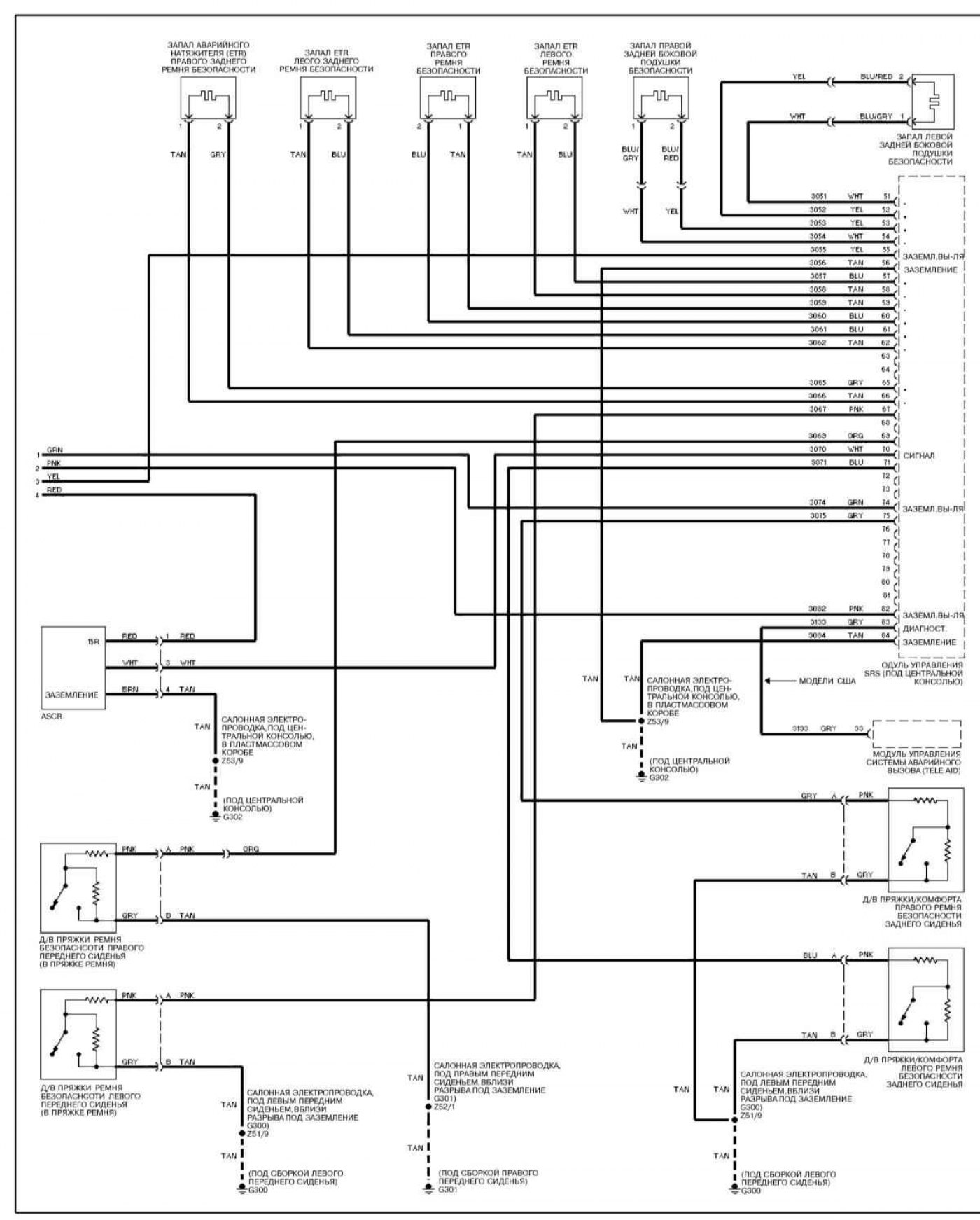

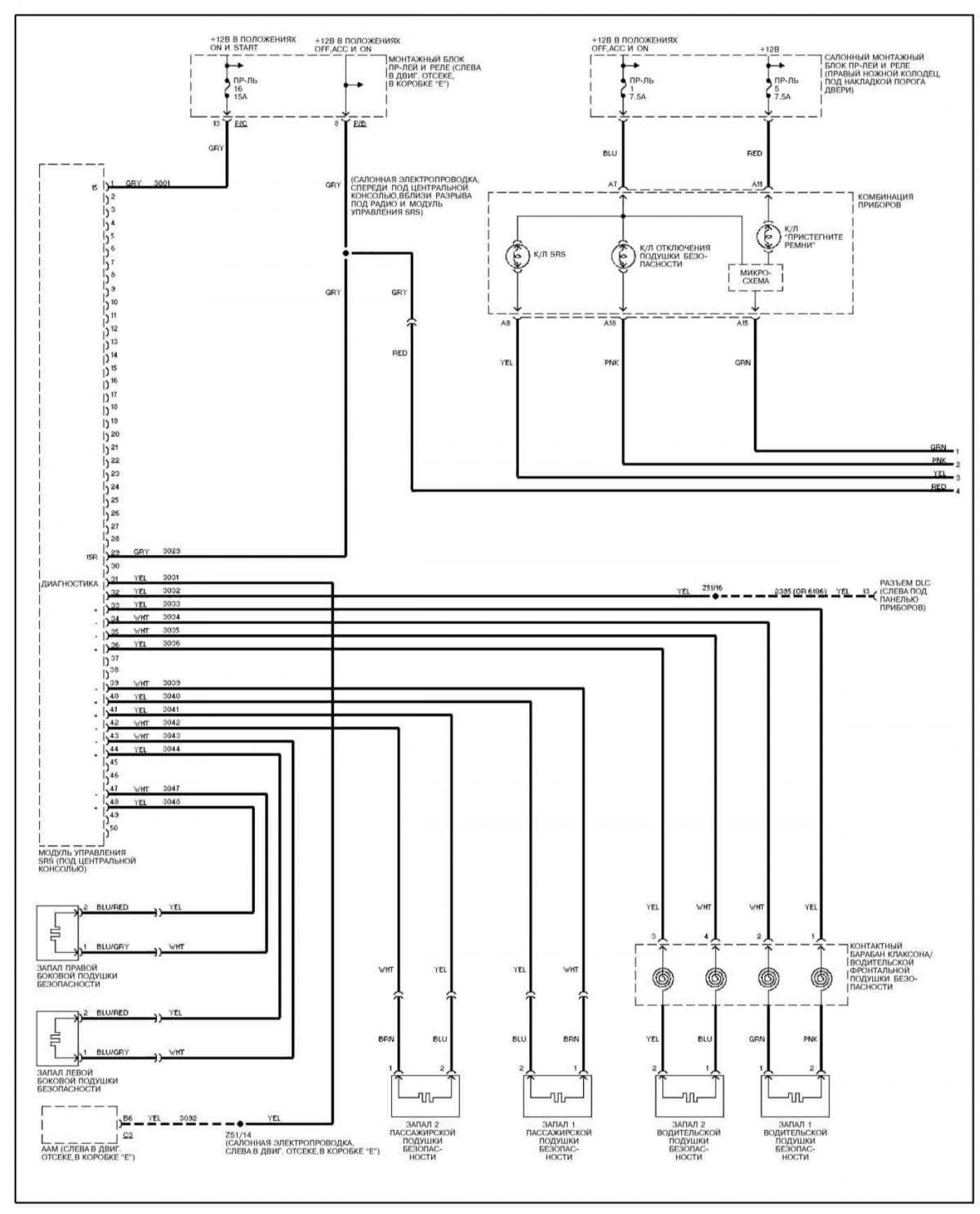

Supplemental Restraint System (SRS) (without seat position memory function) (ML 430)

See the abbreviations, wiring, terminal and terminal designations used in electrical diagrams here →

(Article borrowed from the web portal MERCEDESMAN.ru)

This article is available at: russian, bulgarian, belarusian, ukrainian, serbian, croatian, romanian, polish, slovak, hungarian

The article has been verified: Panova Maya Vladimirovna
