Instrument cluster (ML 430) (Mercedes-Benz M-Class W163)

0

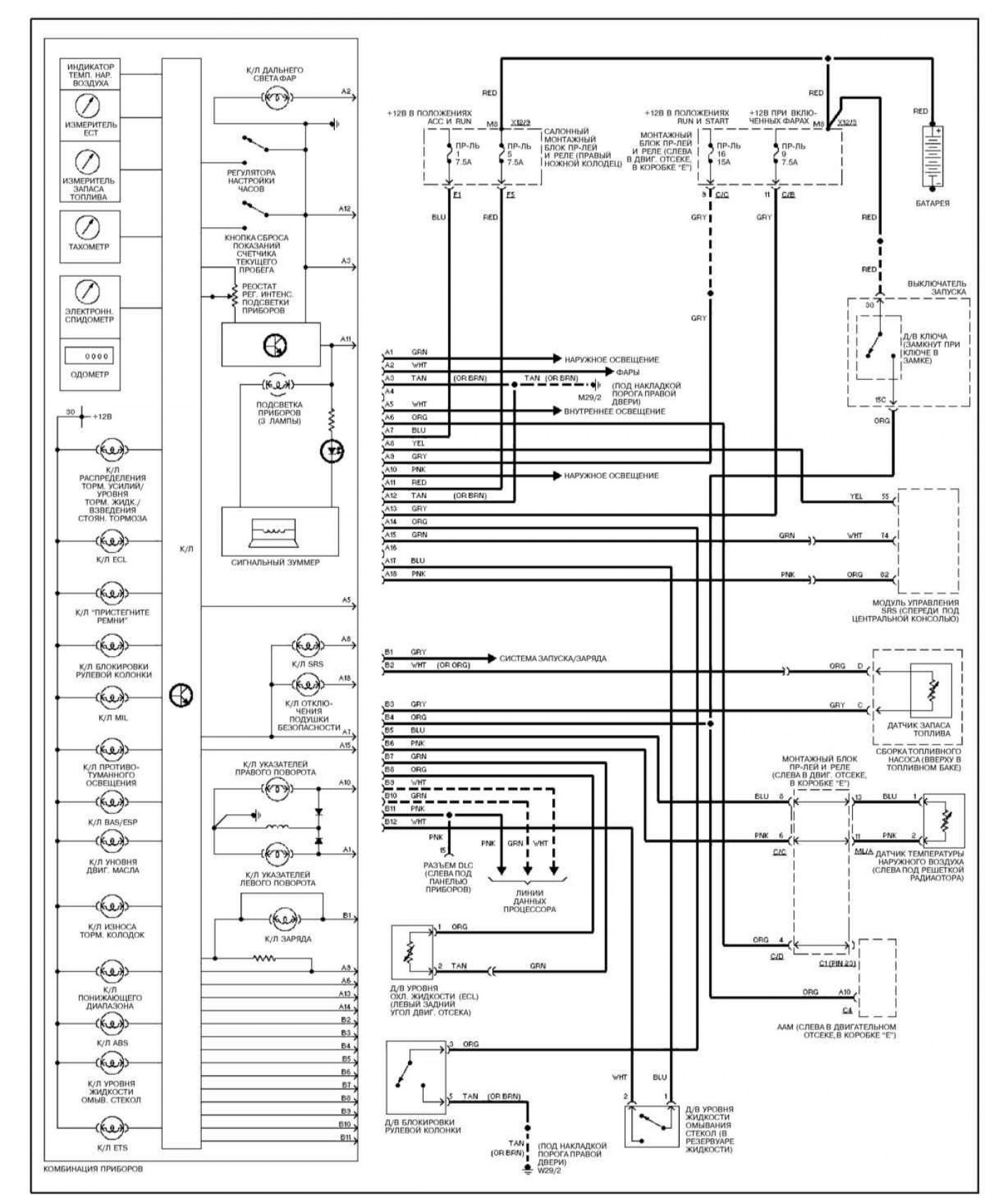

Instrument cluster (ML 430)

Open a larger image in a new tab »

Open a larger image in a new tab »

See the abbreviations, wiring, terminal and terminal designations used in electrical diagrams here →
